PSLE 2023 · Paper 2 · Q12 Measurement & Geometry · Area & perimeter 4 marks: 2 + 2 · long answer (2 parts) difficulty 4 of 5

PSLE 2023 Paper 2, Question 12: Area & perimeter

The answer

(a) \(132\) cm · (b) \(546\) cm²

PSLE 2023 Paper 2 Question 12 · Verified worked solution by the Genius Plus Academy teaching team

What this question tests

This is Question 12 of the PSLE 2023 Paper 2 Mathematics paper. It tests area & perimeter, in the Measurement & Geometry strand. It is worth 4 marks: 2 + 2. Open your copy of the paper at this question, then follow our full worked solution below.

Watch the walkthrough

Video: a Genius Plus Academy teacher solving PSLE 2023 Paper 2 Question 12

Teacher video · 2023 P2 Q12

Step-by-step solution

(a) The boundary of the shaded part is made up of circle arcs that together form exactly 3 full circles: \(3 \times \frac{22}{7} \times 14 = 3 \times 44 = 132\) cm.

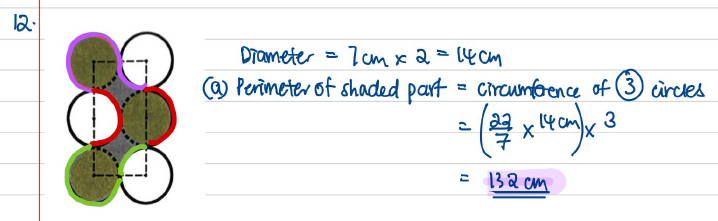

Shaded circles whose arcs form three full circles — Marked-up figure from the GPA worked solution for (a), the boundary arcs are traced as 3 full circles of diameter 14 cm.

(b) By cut-and-paste, the shaded area equals the dashed rectangle through the corner centres plus the parts of the shaded circles outside it: the parts outside (\(\frac{3}{4} + \frac{3}{4} + \frac{1}{2}\) of a circle) minus the unshaded circle parts inside (\(\frac{1}{4} + \frac{1}{4} + \frac{1}{2}\)) come to exactly 1 full circle. Area \(= (14 \times 14) \times 2 + \frac{22}{7} \times 7 \times 7 = 392 + 154 = 546\) cm².

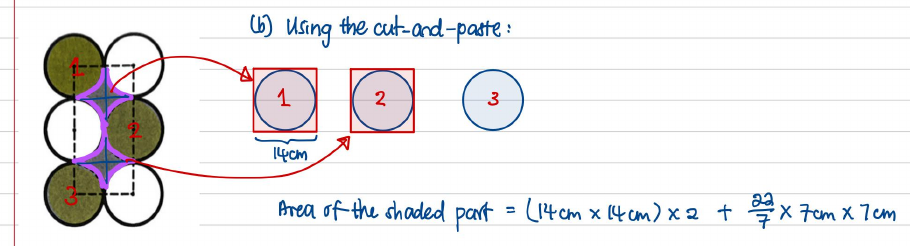

Cut-and-paste rearrangement for the shaded area — Cut-and-paste figure from the GPA worked solution for (b), the shaded parts rearranged into two \(14 \times 14\) squares plus one full circle.

Answer: (a) \(132\) cm · (b) \(546\) cm²
